BTE195 series block shredders are suitable for shredding small and medium plastic blocks to form granules used in injection molding or blow molding machines. For example, the raw material can be shredded into smaller size (Ø 40mm) by shredders, then the Ø 40mm material should be crushed into smaller size (to Ø 10mm) by granulators. Special design ensures the material gets no pollution nor overheating. The machine provides a compact structure, nice appearance, easy operation, optimized rotating blades, minimum energy consumption and high efficiency.
Характеристики
- Split-type body that makes changing the screen mesh and tools simple and quick;

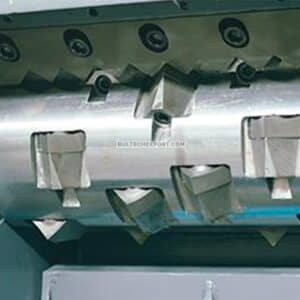

- Special cutter design adopting shear principle, with cutters made of high-chromium shred, able to crush various plastic waste easily;
- The gap between the blades is adjustable, so they can easily be dismounted for resharpening. The blades can also be used repeatedly, ensuring long service term;
- Outside bearing seat designed in order to avoid the dust entering into the bearings ensures long service time;
- Feeding hopper and screen bed are opened easily by an electric motor-driven system, smoothly and effortlessly;
- Overload protection for motor and interlock protection device, ensuring double protection for the safety of both the workers and the motor;
- Vibration-resistant feet reduce the noise of vibration.
Спецификации
BTE195 | Block single shaft shredders | |||||
---|---|---|---|---|---|---|
2240G | 2260G | 2240 | 2260 | 48120 | ||
Мощност | kW | 11 | 15 | 11 | 15 | 45 |
Обороти на мотора | rpm | 64 | 64 | 64 | 64 | 64 |
Въртящи се ножове | pcs | 18 | 28 | 18 | 28 | 84 |
Фиксирани ножове | pcs | 2 | 2 | 2 | 2 | 6 |
Screen Diameter | mm | Ø40 | Ø40 | Ø40 | Ø40 | Ø40 |
Размер на камерата за рязане | mm | 430×660 | 430×660 | 430×660 | 630×660 | 800×1000 |
Производителност | kg/h | 100-200 | 150-300 | 100-200 | 150-300 | 1500-2000 |
Шум | dB(A) | 80-95 | 80〜95 | 80〜95 | 80-95 | 100-120 |
G granulator технически параметри | ||||||
Мощност | kw | 11 | 15 | |||
Обороти на мотора | rpm | 560 | 560 | |||
Въртящи се ножове | pcs | 6 | 6 | |||
Фиксирани ножове | pcs | 2 | 2 | |||
Screen Diameter | mm | ∅10 | ∅10 | |||
Material box | ● | ● | ||||
Blower Coveying System | ○ | ○ | ||||
Dust separator system | ○ | ○ | ||||
Тегло | kg | 900 | 1100 | 500 | 650 | 6800 |

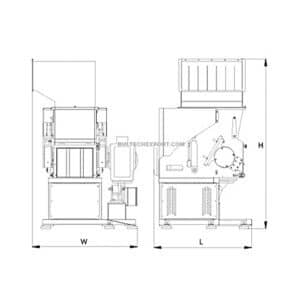

външен размер | ||||||
L | mm | 1250 | 1250 | 1080 | 1080 | 2075 |
W | mm | 1180 | 1380 | 1180 | 1380 | 2090 |
H | mm | 2240 | 2240 | 1870 | 1870 | 2520 |
